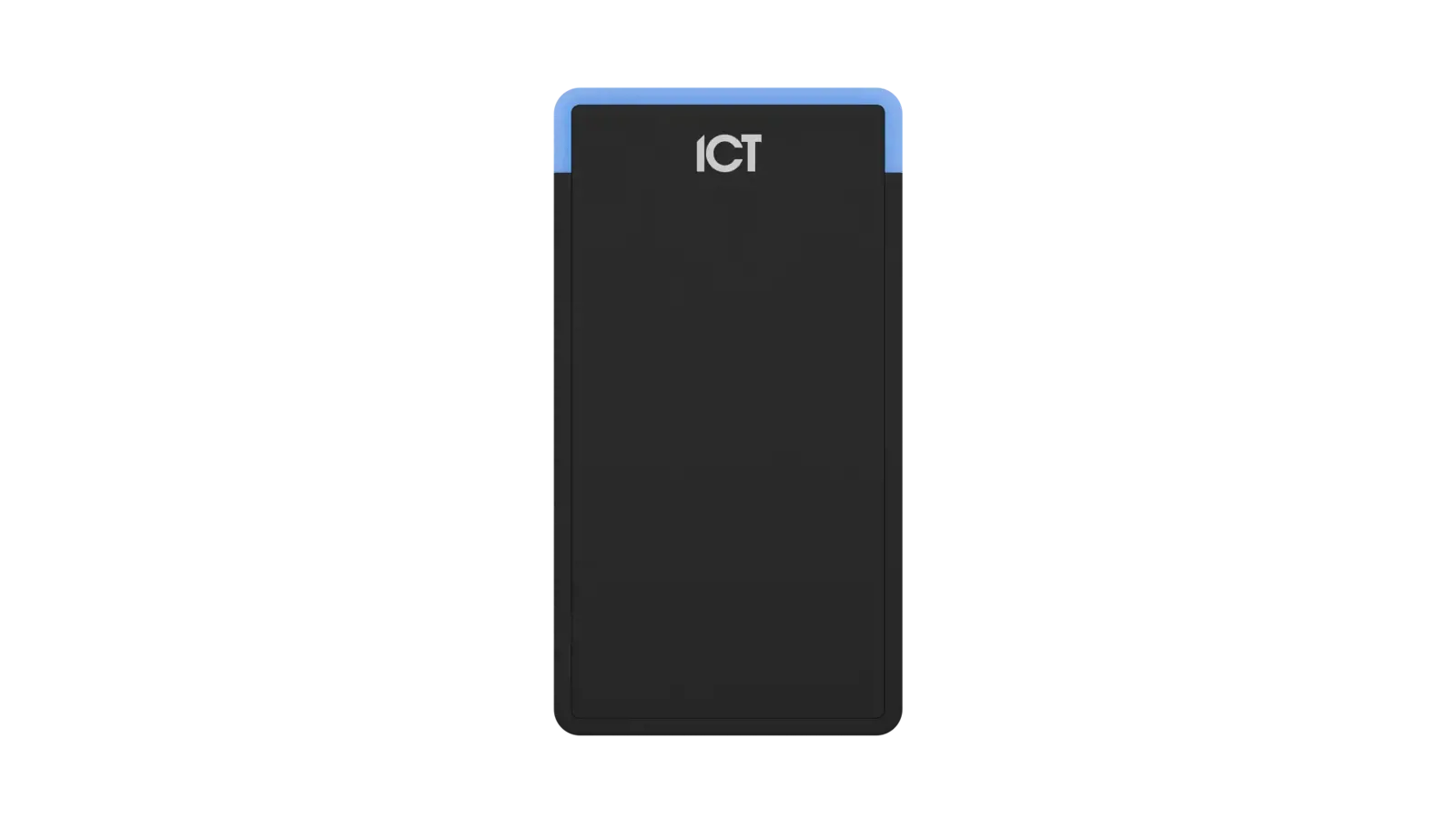

tSec Mini
RFID Card Reader
PRX-TSEC-MINI
The smallest of the tSec family, the Mini is both unobtrusive and cost effective.
- Multi card technology provides support for 13.56MHz (DESFire and MIFARE) and 125kHz cards from a single reader
- Encrypted RS-485, OSDP with secure channel, or standard Wiegand communication
- Optional Bluetooth® / NFC credential reading
- Configurable LED strip
- Read range up to 60mm (2.36″) with proximity ISO cards
- Fully encapsulated design with environment IP Rating of IP65 for outdoor and indoor operation
- Optional vandal resistant cover
Features
A range of optional features means there is a model to suit everyone.
- Choose from the 125kHz or MIFARE/DESFire models, or the Multi Technology model that supports all formats
- Optional Bluetooth® / NFC connectivity to allow access via a smartphone
- Optional vandal resistant cover
- Opt for either black or white according to your decor
Available with 13.56MHz smart card capability, or as a multi technology reader that combines both 125kHz proximity and 13.56MHz capabilities in a single unit delivering maximum compatibility while providing a path forward to the latest technology. The multi technology reader is ideal for organizations that wish to transition to smart technology at their own pace, as it means they don’t need to replace all their cards upfront.
Bluetooth / NFC capability enables you to use your smartphone as your access credential for maximum convenience. Equipped with support for most modern iOS and Android devices, you can unlock the door using a unique access credential that is entered against your user record in Protege, and authenticated by a secure cloud based server.
Choose between the intelligent RS-485 connection for fast, flexible, secure communication, or Wiegand for compatibility with all standard access control systems. RS-485 provides the added benefits of being easier and more cost effective to wire and deploy, and allows for direct integration with Protege systems enabling you to make changes on the fly once readers are installed. RS-485 also allows for longer cable runs and offers a simpler firmware update process.
The OSDP protocol improves interoperability and adds scalability, flexibility and ease of implementation. OSDP with Secure Channel offers additional security with AES-128 encryption and predefined key management and authentication. For specifications and reader configuration, refer to AN-321 Configuring tSec Multi-Technology Card Readers for OSDP Communication.
The tSec reader provides the ability to change the color of the LED strip (16 colors available) to show when a function has started, succeeded or failed. For example, when a function is used to arm an area, you can set the LED to change to purple to show that the function has started, yellow to show that the area has armed successfully, and red to indicate that the function has failed.
Note: This feature is only supported when wired using RS-485.
The IP65 environmental rating provides a high degree of protection from the elements, making the tSec reader suitable for harsh environments. Readers can be mounted indoors or outdoors, located anywhere from the car park gate to the office door.
Note: This feature is only supported when wired using RS-485.
Designed to withstand some of the harshest settings, the optional vandal resistant covers are ideal for locations where a card reader may be exposed to damage, including corridors, parking buildings, correctional facilities, and other public places. Highly resistant to impact, such as from the swing of a hammer or baseball bat, its robust construction provides greater durability and protection against vandalism and malicious damage. The flush design also serves as an anti-ligature measure for an additional level of safety.
Covers can be ordered for the tSec Mini Reader using the part code : PRX-MVRC
Mounted correctly, the tSec Reader Vandal Resistant Cover is compliant to DHF TS 001:2013, the ENHANCED REQUIREMENTS & TEST METHODS FOR ANTI-LIGATURE HARDWARE to grade B4 for vertical direction devices and to impact level IK10.
Available Models / Ordering Information
|
Order Code / Description |
Color |
Keypad |
125kHz |
MIFARE/ DESFIRE/ NFC |
Bluetooth® Technology |
Vandal Resistant Cover* |
| PRX-TSEC-MINI-B tSec Mini Multi-Technology Card Reader |
Black | |||||
| PRX-TSEC-MINI-125-B tSec Mini 125kHz Card Reader |
Black | |||||
| PRX-TSEC-MINI-DF-B tSec Mini 13.56MHz Card Reader |
Black | |||||
| PRX-TSEC-MINI-BT-B tSec Mini Multi-Technology Card Reader with Bluetooth® Wireless Technology |
Black | |||||
| PRX-TSEC-MINI-BT-W tSec Mini Multi-Technology Card Reader with Bluetooth® Wireless Technology |
White | |||||
| PRX-TSEC-Mini-DF-BT-B tSec Mini 13.56MHz Card Reader with Bluetooth® Wireless Technology |
Black |
Specifications
| Ordering Information | |
| Order Codes | See available models |
| Power Supply | |
| Operating Voltage | 12VDC (9.5 to 14VDC) |
| Operating Current | 203mA (peak, reading) |
| Communications | |
| Card Read Range | MIFARE 60mm (2.36″)* DESFire EV1/EV2 ISO 15mm (0.6″)* 125kHz Clamshell 40mm (1.57″)^ |
| Tag Read Range | MIFARE 30mm (1.2″)* DESFire EV1/EV2 ISO 6mm (0.23″)* 125kHz 25mm (0.98″)^ |
| Wiegand Interface | Multiple format 26 or 34 Bit data 0 and data 1, card defined. |
| Frequency | 13.56 MHz ISO/IEC 14443 Type A* 125kHz pulse width modulated^ |
| Multi Conductor Cable | Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft) Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft) |
| OSDP Communication | OSDP standard 2.1.5 with Secure Channel Protocol ** / *** |
| Bluetooth® Wireless Technology | |
| Bluetooth Read Range | Proximity mode: up to 0.5m (1.6ft) Configurable** Action unlock (shake): up to 5m (16.4ft) Configurable** |
| Bluetooth Electronic credential transmission technology | NRF8001 Bluetooth 4.0 compliant Proprietary data exchange protocol. AES128 Encrypted Reader App Version: 1.04.175 and above Credentials can be distinguished by unique site code and card number |
| Bluetooth Wireless Device | Protege Mobile 1.0.x |
| NFC | |
| NFC Read Range | Up to 60mm*** |
| NFC (Near-field communication) Electronic credential transmission technology | Android 4.4 or above, with phones which support ISO7816-4 Proprietary Secured DESFire credential Credential is AES-256 (NIST certified AES algorithm) Reader App Version: 1.04.175 and above Credentials can be distinguished by unique site code and card number |
| NFC Wireless Device | Protege Mobile 1.0.x |
| Operating Conditions | |
| Environment IP Rating | IP65 |
| Operating Temperature | UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F) |
| Storage Temperature | -10° to 85°C (14° to 185°F) |
| Mean Time Between Failures (MTBF) | 520,834 hours (calculated using RFD 2000 (UTE C 80-810) Standard) |
| Dimensions | |
| Reader Dimensions (H x W x D) | 85 x 46 x 17mm (3.35 x 1.81 x 0.67”) |
| Vandal Resistant Cover (H x W x D) | PRX-MVRC tSec Extra Reader cover: 127 x 88 x 20mm (5.0 x 3.46 x 0.78”) |
| Weight | |
| tSec Mini Reader | Net Weight: 80g (2.8oz) Gross Weight: 100g (3.5oz) |
*Applies to MIFARE/DESFire and Multi-Technology models only
^Applies to 125kHz and Multi-Technology models only
**Applies to 125kHz and Multi-Technology models only
***Applies to 125kHz and Multi-Technology models only
