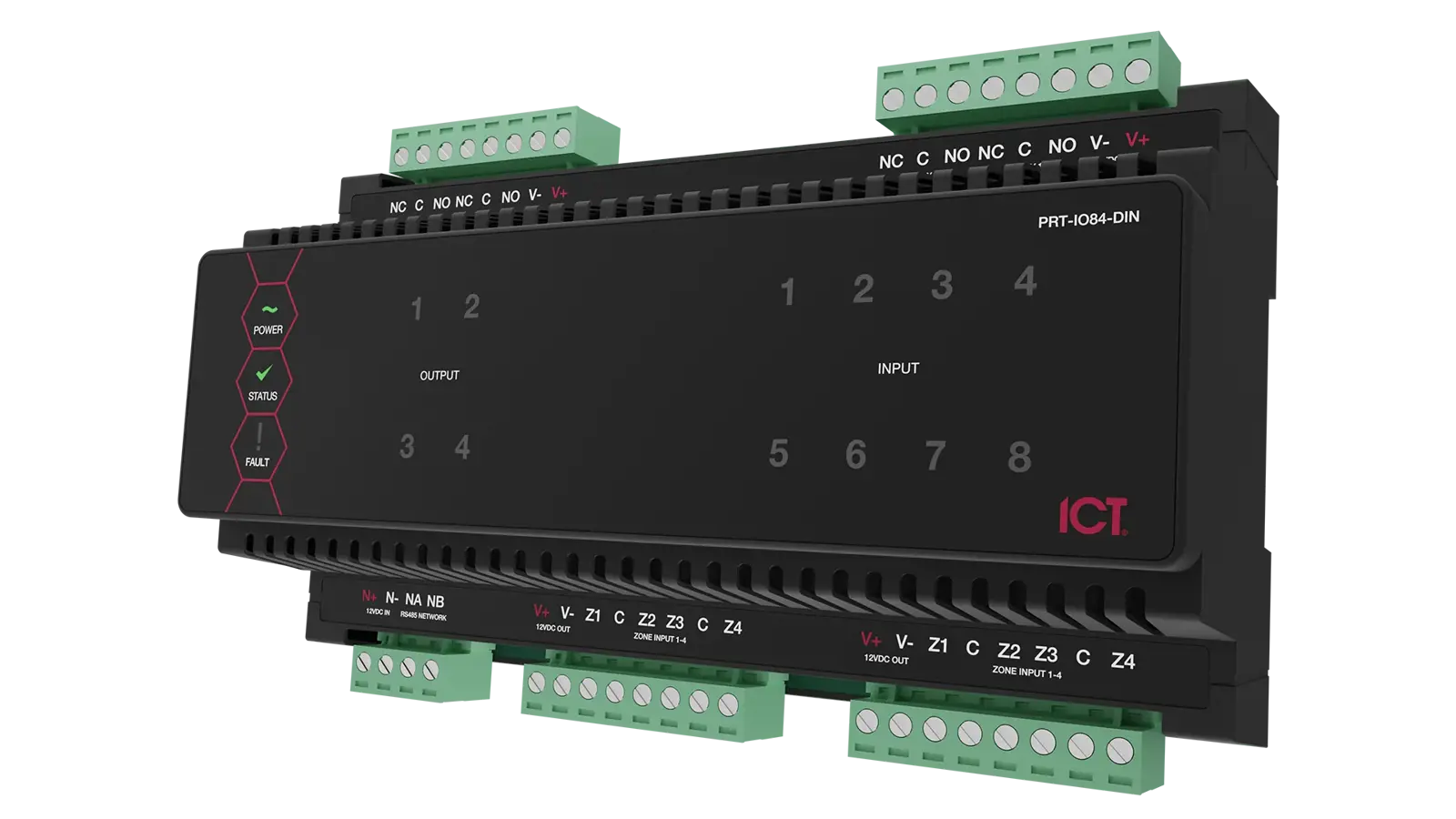

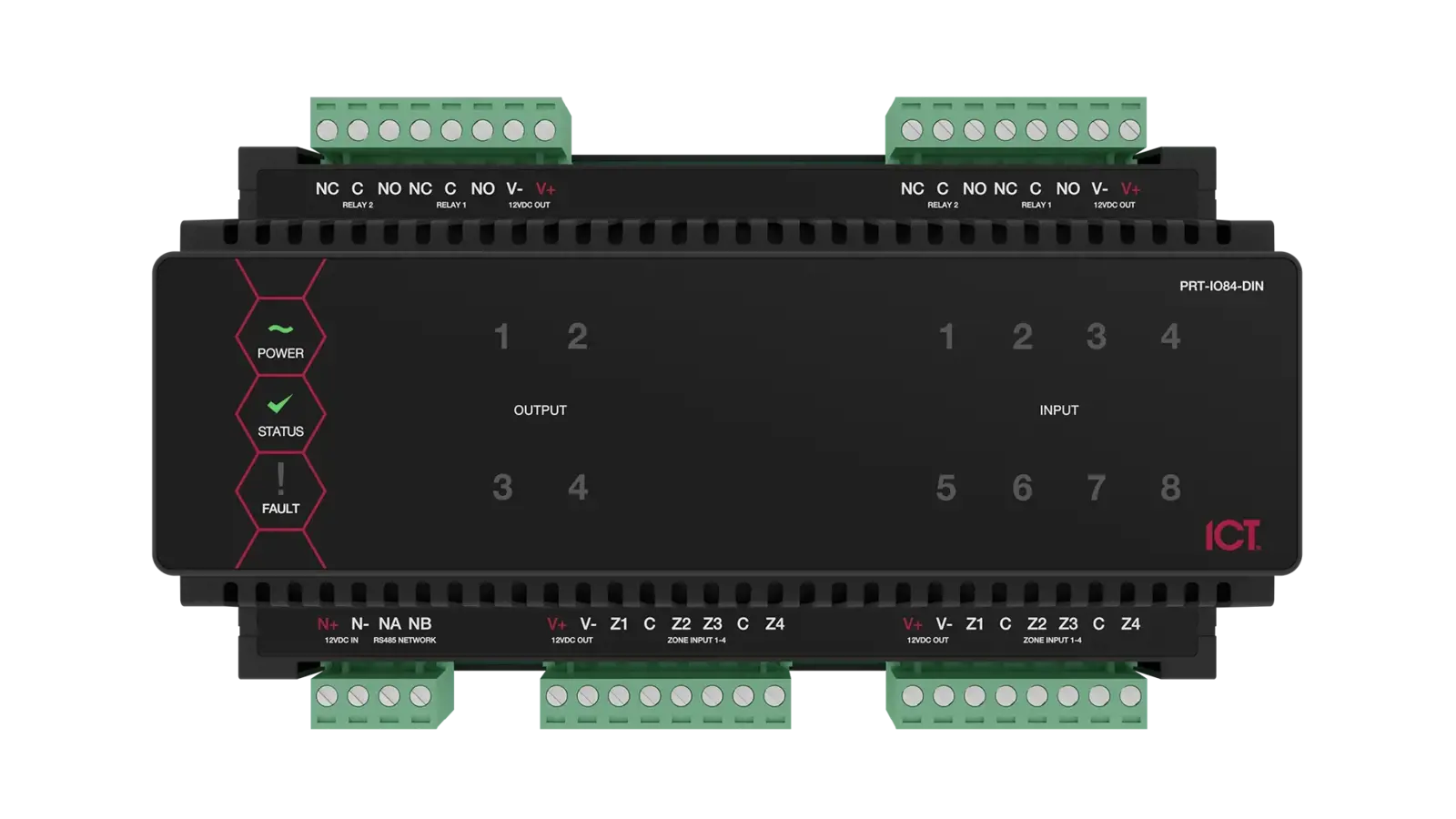

Protege DIN Rail
8 Input / 4 Output Expander

PRT-IO84-DIN

The Protege DIN Rail 8 Input 4 Output Expander extends the number of inputs by 8, allowing monitoring of a wide range of EOL capable or open contact sensors; and extends the number of outputs by 4, featuring high current Form C relays for controlled automation of building systems including lighting and HVAC.

  • 8 monitored inputs
  • Connect any combination of normally closed or normally open inputs, configurable per input
  • Four-state input alarm using resistors to provide short, alarm, closed and tamper conditions
  • 4 Form C relays capable of switching resistive loads up to 7 Amps

Features

Extending the Protege system with local inputs and outputs allows convenient, cost-effective expansion with the following additional benefits:

  • 8 inputs can be assigned to any 4 areas in the system each being processed using different options or features
  • 4 multiple-function outputs available for use in any programmable output configuration
  • Outputs can be configured to automatically turn on or resume their previous state upon restoration of power or communication failure
  • Address configuration is achieved using the address programming feature of the Protege System Controller.

Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost-effective power distribution.



The input/output expander has 4 programmable Form C relay outputs which can be used to activate bell sirens, lighting circuits, door locks, relay accessory products and other automation points.



A single RS-485 communication interface port used for all network communication functions and interconnection to other modules.



The input/output expander features comprehensive diagnostic indicators that can aid in diagnosing faults and conditions. LED indicators include:

  •  Status indicator
  • Fault indicator
  • Power indicator
  • Input indicators
  • Output indicators

Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated via the Protege interface.

Specifications

Ordering Information
PRT-IO84-DIN Protege DIN Rail 8 Input/4 Output Expander
Power Supply
DC Input Voltage 11-14VDC
DC Output Voltage (DC IN Pass-Through) 10.45-13.85VDC 0.7A (Typical) Electronic Shutdown at 1.1A
Operating Current 80mA (typical)
Low Voltage Cutout 8.7VDC
Low Voltage Restore 10.5VDC
Communication
RS-485 Isolated module network
Outputs
Outputs 4 FORM C Relays – 7A N.O./N.C. at 30 VAC/DC resistive/inductive
Inputs
Inputs 8 (10ms to 1hr input speed programmable)
Trouble Inputs 16
Dimensions
Dimensions (L x W x H) 156.8 x 90 x 60mm (6.17 x 3.54 x 2.36″)
Net Weight 310g (10.9oz)
Gross Weight 380g (13.4oz)
Operating Conditions
Operating Temperature -10° to 55°C (14° to 131°F)
Storage Temperature -10˚- 85˚C (14˚ – 185˚F)
Humidity 0%-93% non condensing, indoor use only (relative humidity)
Mean Time Between Failures (MTBF) 587,177 hours (calculated using RFD 2000 (UTE C 80-810) Standard)
